Remote Type: Preprogrammed and Learning LCD Touchscreen with Joystick Operation
Display: LCD Touchscreen with 50 customizable pages
Total of 4 display pages per each of the 12 devices (components)
Two LCD pages for device buttons
Up to 14 distinct buttons or commands per each screen (or page)
Size: 8.9" x 2.9" x 1.5" (L x W x H)
Weight: 10.2 oz (with batteries)
Learning Capabilities: Learns up to 780 commands via infrared from device remote controls
Macro Capabilities: Sends out multiple commands at once
M1, M2, M3 keys send out 28 commands each
12 device buttons that send up to 14 commands each
60 favorite channel buttons send out 12 commands each
Memory: 4 MB non-volatile SRAM
Preprogrammed: For over 1,000 audio and video components (devices)
Set-up is easy using three digit preprogrammed code numbers
Joystick: Provides quick access to device options w/thumb
PC Interface: RS-232, 3 wire mini-plug (included) for connectivity with your PC to program the remote control and download update versions of the operating system
Commands: 64 touchscreen commands per device
13 hard button commands and five joystick commands per device
Punch: Punch Through operations of any of the 12 devices from any of the 12 devices for Volume, Channel and Transport (Play, Stop, Fast Forward, and Rewind)
Custom: The LCD screen and buttons feature "EL" Backlighting Illumination - duration can be adjusted according to personal preference
The function beep sound, low-battery warning, set clock/date, and LCD contrast levels can all be adjusted
Power Supply: 4 AA alkaline (Duracells Included)
Configurable automatic shut-off
Warranty: 1 year parts & labor
Specifications

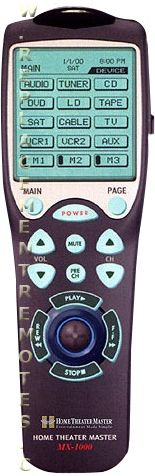

Model: MX1000 Part Number: MX-1000 Catalogue No.: 60866
