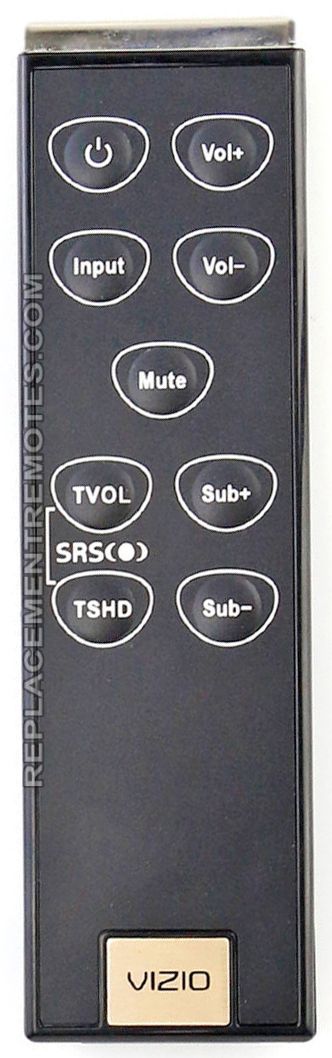

VIZIO HD SOUND BAR SYSTEM REMOTE

The VIZIO Remote Control supplied is designed to be used exclusively with this product. The remote

button functions are described below:

1. Power – Use this button to turn HD Sound Bar System ON or OFF.

2. Input – Use this button to select the input desired. Repeated

pressing will cycle through Input 1, Input 2 or Optical In.

3. Vol+ – Pressing this button will increase the volume level.

Hold for one-half second to continuously increase volume.

4. Vol - – Pressing this button will decrease the volume level.

Hold for one-half second to continuously decrease volume.

5. Mute – Pressing this button will either mute or un-mute the Sound

Bar/Subwoofer system.

6. TVOL– Pressing this button will set the sound system to have

control over the level of the audio output, preventing commercials

on regular programming to become louder than the volume of the

program being viewed. Pressing this button will toggle SRS

TruVolume ON and OFF.

7. TSHD – Pressing this button will toggle SRS TruSurround HD ON

and OFF.

8. Sub+ – Pressing this button will increase the volume output of the

Subwoofer relative to the overall system volume.

9. Sub- – Pressing this button will decrease the volume output of the

Subwoofer relative to the overall system volume.

If you own a VIZIO TV with a Universal Remote that uses a 5-digit programming code, you may program

a device button with code 31517. This will map the Universal Remote button to operate the HD Sound

Bar System as follows: Pictured at right is the VIZIO VUR8P Universal Learning remote.

Vizio Remote key - HD Sound Bar System

Power - Power

Input - Input

Volume Up - Volume Up

Volume Down - Volume Down

Mute - Mute

Channel Up - Sub Volume Up

Channel Down - Sub Volume Down

Menu - SRS TruSurround

INFO - SRS TruVolume

Programming a Universal Remote to operate the HD Sound Bar System
If you own a VIZIO TV with a Universal Remote that uses a 5-digit programming code, you may program
a device button with code 31517. This will map the Universal Remote button to operate the HD Sound
Bar System as follows: Pictured at right is the VIZIO VUR8P Universal Learning remote.

Vizio Remote key HD Sound Bar System
Power - Power
Input - Input
Volume Up - Volume Up
Volume Down - Volume Down
Mute - Mute
Channel Up - Sub Volume Up
Channel Down - Sub Volume Down
Menu - SRS TruSurround
INFO - SRS TruVolume

Battery Required : CR2025 Battery
Guaranteed Compatible Universal : Anderic RRU401, Use code: 4240 (click here for programming instructions)
Frequency Type : IR
Dimensions: 1.00 x 4.00 x 1.00 (W x L x D, inches)
